Yamanaka Group
Aluminum Tubes
Aluminum tubes have superior barrier performance and dead-folding properties
Aluminum tubes are widely used for pharmaceutical products and in many other fields that require containers which can reliably hold the contents.
Kansai Tube is continuing to research and develop aluminum tubes, so that they can be used in an even wider range of fields.
Aluminum Tube Features
- Seamless single-piece metal molding
- Excellent outside air barrier properties
- Superb content suitability
- Low cost
Widely used in pharmaceuticals and hair dye, etc.
Aluminum Tube Sizes
| Outside Diameter (mm) | Body Length (mm) | Standard Capacity (cc) |
|---|---|---|
| 11.1 | 50–80 | 3 |
| 12.7 | 50–90 | 5 |
| 13.5 | 55–90 | 6 |
| 15.9 | 60–120 | 10 |
| 17.5 | 70–120 | 15 |
| 19.05 | 80–130 | 20 |
| 22.2 | 90–140 | 25 |
| 25.4 | 100–160 | 50 |
| 27 | 110–160 | 60 |
| 28.5 | 120–180 | 80 |
* The listed quantities are reference values. * The Emboss Tube is available in all sizes.
Original Product
Emboss Tubes
Our original emboss shape ensures the tube’s entire contents can be fully used.
The Emboss Tube is our answer to customers’ requests for a user-friendly tube, from which they can easily squeeze out all of the contents with little effort.
Its unique shape is another excellent design feature of this tube.
-
Uses
Pharmaceutical products, Cosmetics, etc.
-
Features
- Easy-to-squeeze universal design
- Little content is left in the tube

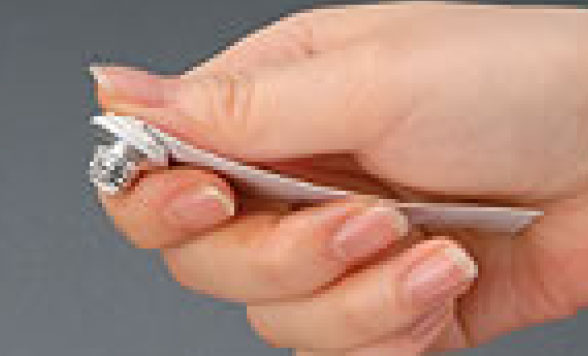

Squeezing the Emboss Tube
-
Before Use
-
Squeezing
-
Completely Folded Flat
